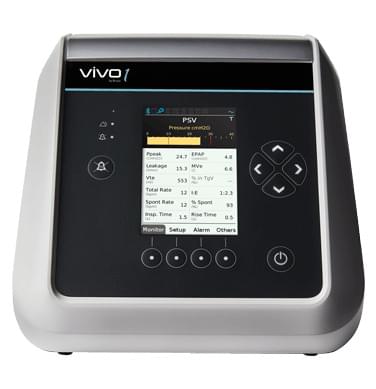

Breas Vivo 1 is a new-generation ventilator designed for personalized and comfortable non-invasive respiratory support for non-dependent patients with chronic breathing insufficiency. The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.
Breas Vivo 1 Technical Specifications
Ventilation Modes
S, ST, PSV, CPAP
Adult/Pediatric
>10kg
IPAP
4 – 25 cmH2O
EPAP
2 – 20 cm H2O
Breath Rate/Back-up Rate
0-40 bpm
Inspiratory Time
0.3 – 5 s
Rise Time
1 – 9
Inspiratory Trigger
1 – 9
Expiratory Trigger
1 – 9
Minimum Inspiratory Time
Off, 0.3 – 3 s
Maximum Inspiratory Time
Off 0.3 – 3 s
Ramp (Up/Down)
Off 10-60mins
Target Volume
100 – 1500 ml
Auto-EPAP
On/Off, Pressure Limit: Max EPAP +2 cmH2O –25 cmH2O, PS 2-23c, Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12mins/Off
Humidifier Level
1-5
Heated Circuit
Off, 1-5
Patient Circuit
15mm, 22mm
O2 Bleed in (Device)
0-30L/min
Monitoring
Displayed data
Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate
Power Supplies
Mains supply
100 to 240 V AC
External DC
24 V
Alarms
Alarms
High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Power Failure
Dimensions
W x H x D 166 x 185 x 200 mm
Weight
1.6kg
Noise level (at 10 cmH2O constant pressure)
Less than 28 dB(A)
Connectivity and Software
Built-in connectivity USB
Compatible Software
PC Software and is prepared for EveryWare Remote Monitoring*
Plug-and-Play accessories
SpO2, Nurse Call, Remote Alarm, Accessories Box
Other
Humidification
Integrable water chamber
Circuits
Cleanable & Disposable leakage circuits with/without heated wires
Confirm Stop
On, Off
Compliance Data (on Screen)
Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage, Average Usage, Days Compliant, AHI
Country Of Origin – Sweden
Warranty- 2 Years
